Semi automatic plastic/pet bottle blowing machine price

FOB Reference Price:Get Latest Price
$5,000.00 - $18,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
YC-5L-1
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PET
Condition:
New
Application:
Bottle
Blow Moulding Type:
Stretch Blow Moulding
Place of Origin:
Jiangsu, China
Brand Name:
JIAZHOU
Voltage:
380V50HZ,220V50HZ
Dimension(L*W*H):
According to different model
Certification:
CE,ISO9001,BV,TUV
Name:
Semi automatic plastic/pet bottle blowing machine price
Blowing Cavity:
2 cavities
Usage:
PET plastic bottle blowing
Automatic Grade:
Semi automatic
Bottle size:
According to your model
Mould size:
According to your model
Raw material:
PET plastic bottle preform
Packing machine:
Standard wooden case
Delivery time:
30 working days
Key words:
bottle blowing machine
Automatic:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
17.5KW
Weight:
250kg
Warranty:
one year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Wooden Case packing
Port
Shanghai port

Product Description

  1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.

  2. Pneumatic elements from FESTO (German) and SMC (Japan)

  3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.

  4. Malfunction alert and diagnostic units allow easy maintenance.

  5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..

  6. Oven can be made according the different preform requirements of customers.





Semi-Automatic Blowing Machine parameter:

type

raw

materials

PET/PE/PC

Theoretical capacity

400-800

The biggest bottle volume(L)

5

Pneumatic specifications

Operating pressure (KT/cm2)

8

The largest diameter of the bottle (mm)

180

Low-pressure

air (1tr/min)

300

Maximum bottle height (mm)

350

Blowing pressure (kg/cm2)

25

Dental Department of the largest size (mm)

120

High-pressure air consumption (1tr/min)

350

molding

Die force(KN)

90

Power specifications

Total power consumption

(kw)

14

Die stroke(mm)

235

Heating power

(kw)

12.8

pulling stroke(mm)

450

Size and weight

Machine size

(M)

2X0.65X1.75

The number of the cavity (cavity)

2

Machine weight

(T)

0.71

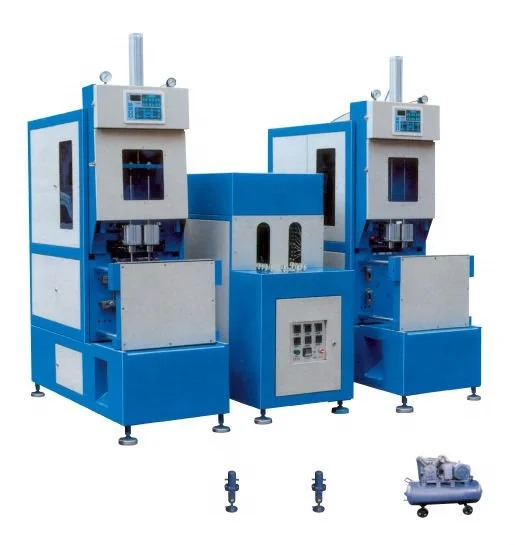

Product pictures

Our company

Our certfication

Packing&delivery

FAQ

1.Why choose JIAZHOU ?
   JIAZHOU mainly engaged in water treatment system and beverage filling machine,packing machine,

bottle blowing machine.we have the complete production line.and we have more than fifteen years experience and we are committed to offer professional solutions and good service for you.
2.How about the spare parts?
   After we deal down all the things , we will offer you a spare parts list for your reference.

3.Are you a trading company or a manufactory?
   We are a manufactory, we supply the factory price with good quality, welcome to visit our factory!

4.How long can you arrange delivery?
   About 30 days after we received the deposit (30% by T/T in advance), all the machines will be ready.

You are welcomed to test the machine in our factory or we send you video of your machine running.
5.What's your guarantee or the warranty of the quality if we buy your machines?
   We offer you high quality machines with 1 year guarantee and supply life-long technical support.

6.How could I know if your products' specification is suit for our country power?
   Our machine is custom made. We will make suitable voltage and frequency products according to your need.
7.How about your after-sale service?
   We have English Manuals for all products, which can help you to know the operation easily,
our technician is available to go abroad to install the machines and guide the workers of buyer how to operate and necessary repair, and give buyer a turnkey project.
Besides, for any question about the products, you can feel free to contact us for suggestion.


If you have any questions or help please feel free to contact me!
